Elevation plans should show:

  • The proposed works in relation to what is already there for any elevations that would be created or altered by the development proposal.
  • These should indicate, where possible, the proposed building materials and the style, materials and finish of windows and doors
  • Where a proposed elevation adjoins another building or is in close proximity to it, the drawings should show the relationship between the two buildings and detail the positions of the openings on each property.

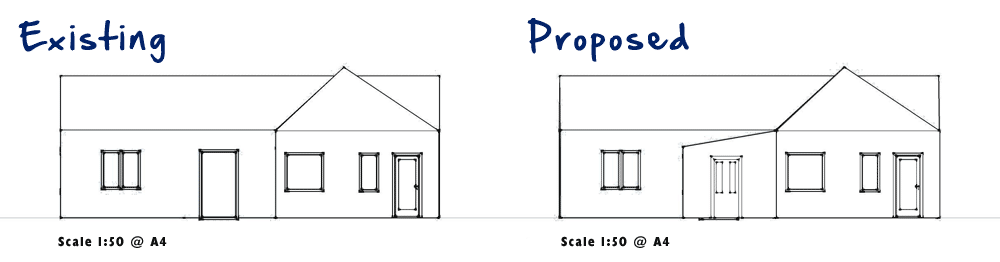

The clearest way to illustrate your proposed scheme is to include plans that show the existing i.e. the site as before any changes and the proposed i.e. the site as after the proposed changes.
